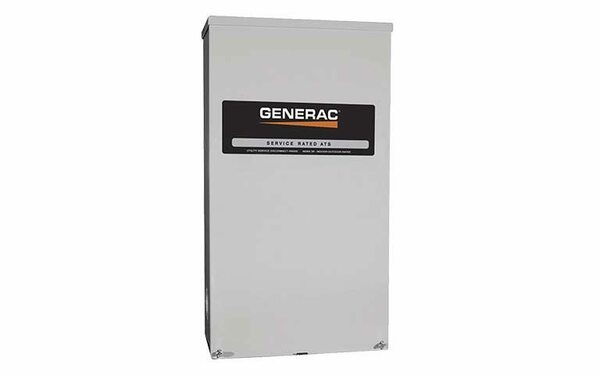

Generac 200-Amp Automatic Transfer Switch (Service Disconnect - 120/240V 3-Phase)
  • Generac 200-Amp Automatic Transfer Switch (Service Disconnect - 120/240V 3-Phase)

Generac 200-Amp Automatic Transfer Switch (Service Disconnect - 120/240V 3-Phase)

item #OG730824780

USD 1,018.68
Quantity:


Product Description

Features

Type

Service Disconnect

Amp Rating

200

Load Mgmt.

Not Compatible

Enclosure

NEMA 3R

  • 200-Amp Automatic Operation
  • For Use With Generac Generators Only
  • 120/240V 3-Phase Automatic Transfer Switch
  • Designed for use with 120/240V 3 Phase generators
  • For Generac Evolution™ & Generac Nexus™ Controllers
  • Service Entrance Rated (Load Side & Line Side Disc. Breakers)
  • Installs between main meter & service panel
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder paint (Gray)
  • UL Listed 2200

Product Specification

Specifications

Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Service Disconnect
Yes
Max Utility Input
200 Amps
Max Generator Input
200 Amps
UL Listed
Yes
Overview
Weight
50 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
48 Inches
Product Width
21.82 Inches
Product Height
10.6 Inches
UPC
696471620474
