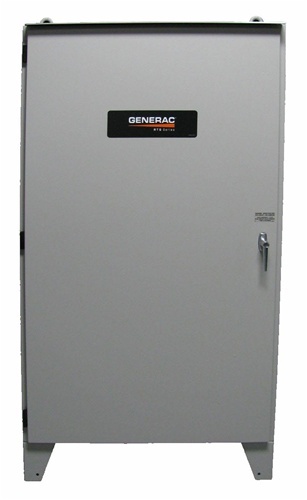

Generac Guardian RTSN600K3 600 Amp Outdoor Automatic Transfer Switch 120 240V 3 Phase
  • Generac Guardian RTSN600K3 600 Amp Outdoor Automatic Transfer Switch 120 240V 3 Phase

Generac Guardian RTSN600K3 600 Amp Outdoor Automatic Transfer Switch 120 240V 3 Phase

item #OG730858365

$3,314.35
Quantity:


Product Description

Features

Type

Standard

Amp Rating

600

Load Mgmt.
Enclosure

NEMA 3R

  • 3-Phase Automatic Transfer switch
  • Only works with 277/480 3-Phase generators
  • Fully Automatic Operation
  • Standard Installation
  • May require a sub-panel or disconnect for serviceability
  • Larger Applications
  • Nema 3R Aluminum Enclosure
  • For Use With Generac Generators Only
  • UL Listed 2200

Product Specification

Specifications

Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
600 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
600 Amps
Max Generator Input
600 Amps
UL Listed
Yes
Overview
Weight
439 Pounds
Consumer Warranty
5 Years
Product Length
66 Inches
Product Width
36 Inches
Product Height
21 Inches
UPC
696471612158
