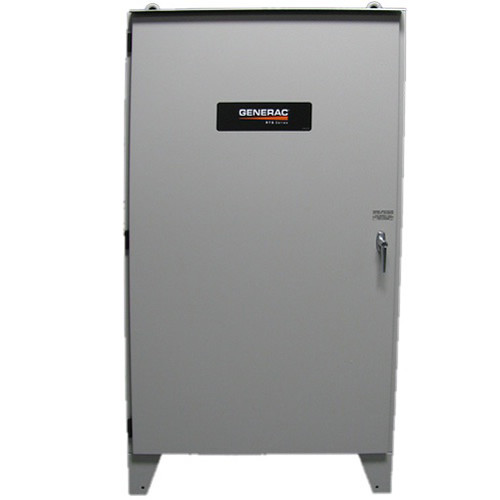

Generac Guardian RTSN800J3 800 Amp Outdoor Automatic Transfer Switch 120 240V 3 Phase
  • Generac Guardian RTSN800J3 800 Amp Outdoor Automatic Transfer Switch 120 240V 3 Phase

Generac Guardian RTSN800J3 800 Amp Outdoor Automatic Transfer Switch 120 240V 3 Phase

item #OG730891065

$3,411.85
Quantity:


Product Description

Features

Type

Standard

Amp Rating

800

Load Mgmt.
Enclosure

NEMA 3R

  • 3-Phase Automatic Transfer switch
  • Only works with 120/240 3-Phase generators
  • Fully Automatic Operation
  • Standard Installation
  • May require a sub-panel or disconnect for serviceability
  • Larger Applications
  • Nema 3R Aluminum Enclosure
  • For Use With Generac Generators Only
  • UL Listed 2200

Product Specification

Specifications

Product Specs
Voltage
120/240 Three-Phase
Frequency
60 Hertz
Rated Amps
800 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Standard Installation
ATS Service Disconnect
No
Max Utility Input
800 Amps
Max Generator Input
800 Amps
Overview
Weight
469 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
66 Inches
Product Width
36 Inches
Product Height
21 Inches
UPC
696471612196
