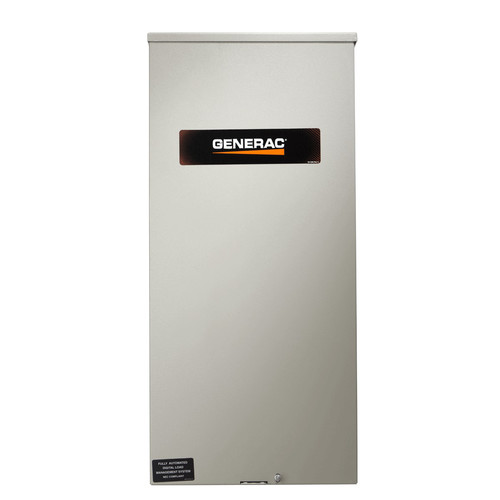

Generac Guardian RTSW200K3 Generac 200 Amp Automatic Transfer Switch Service Disconnect 277 480V
  • Generac Guardian RTSW200K3 Generac 200 Amp Automatic Transfer Switch Service Disconnect 277 480V

Generac Guardian RTSW200K3 Generac 200 Amp Automatic Transfer Switch Service Disconnect 277 480V

item #OG730883344

$1,338.35
Quantity:


Product Description

Features

Type

Service Disconnect

Amp Rating

200

Load Mgmt.

Not Compatible

Enclosure

NEMA 3R

  • 200-Amp Automatic Operation
  • For Use With Generac Generators Only
  • 277/480V 3-Phase Automatic Transfer Switch
  • Designed for use with 277/480V 3 Phase generators
  • For Generac Evolution™ & Generac Nexus™ Controllers
  • Service Entrance Rated (Load Side & Line Side Disc. Breakers)
  • Installs between main meter & service panel
  • NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder paint (Gray)
  • UL Listed 2200

Product Specification

Specifications

Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Compatible
ATS Load Shedding
Not Compatible
ATS Poles
3 Poles
Max Utility Input
200 Amps
Max Generator Input
200 Amps
UL Listed
Yes
Overview
Weight
55 Pounds
Made in USA
Yes
Consumer Warranty
5 Years
Product Length
48 Inches
Product Width
21.82 Inches
Product Height
10.6 Inches
UPC
696471620481
