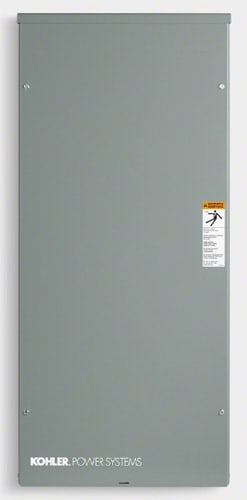

Kohler RDT Series 400 Amp Automatic Transfer Switch Service Disconnect
  • Kohler RDT Series 400 Amp Automatic Transfer Switch Service Disconnect

Kohler RDT Series 400 Amp Automatic Transfer Switch Service Disconnect

item #OG730866908

USD 1,426.36
Quantity:


Product Description

Features

Type

Service Disconnect

Amp Rating

400

Load Mgmt.

Not Included

Enclosure

NEMA 3R

  • Standard Features
  • Service Entrance Rated
  • UL listed and CSA certified
  • Two-pole, single-phase, open-transition transfer switch
  • Double throw inherently interlocked design
  • Solid Neutral
  • 220/240 VAC, 50/60 Hz (jumper)
  • Contractor manually operable for maintenance purposes
  • NEMA 3R (outdoor) enclosure
  • MPAC™ 500 Controller Features
  • User-friendly interface and easy-to-find international symbols
  • LED indication of system faults
  • Test button (with or without load)
  • Exercise set button
  • Single-phase voltage sensing on both sources
  • Line-to-line frequency sensing
  • Fixed time delays
  • 5-year limited warranty

Product Specification

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Rated Amps
400 Amps
Enclosure
NEMA 3R
Transfer Switch Style
Service Disconnect
ATS Load Prioritizing
Not Included
ATS Load Shedding
Not Included
ATS Poles
2 Poles
ATS Service Disconnect
Yes
Max Utility Input
400 Amps
Max Generator Input
400 Amps
Maximum Wattage
96000 Watts
UL Listed
Yes
Overview
Weight
101 Pounds
Consumer Warranty
5 Years
Product Depth
10.6 Inches
Product Width
22 Inches
Product Height
42 Inches
UPC
650531171955
Additional Model Numbers

RDT-CFNC-0400ASE, RDT-CFNC-400ASE
