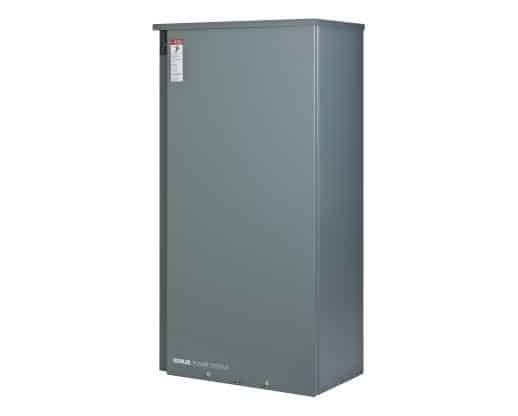

Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch 277 480V 3 Phase
  • Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch 277 480V 3 Phase

Kohler RXT Series 200 Amp Outdoor Automatic Transfer Switch 277 480V 3 Phase

item #OG730896744

USD 635.96
Quantity:


Product Description

Features

Type

Standard

Amp Rating

200

Load Mgmt.
Enclosure
  • Kohler RXT Series 200-Amp Automatic Transfer Switch
  • For use w/ 48RCL 277/480V 3-Phase models
  • Only compatible with Kohler generators with RDC2/DC2 controllers
  • Corrosion-Resistant NEMA 3R Aluminum Enclosure
  • Approved for indoor or outdoor installations
  • Switch can be padlocked for additional safety
  • Standard Features
  • Allows utility voltage display on RDC2/DC2 controller
  • Interface board for connection to the RDC2/DC2 controller
  • Double throw inherently interlocked design
  • Added Safety
  • Contractor manually operable for maintenance purposes
  • Standard Installation
  • Requires a sub-panel for overload protection
  • Rated at 200-Amps @ 277/480-Volts
  • 5-Year Limited Warranty

Product Specification

Product Specs
Voltage
277/480 Three-Phase
Frequency
60 Hertz
Rated Amps
200 Amps
Transfer Switch Style
Standard Installation
ATS Poles
3 Poles
ATS Service Disconnect
No
Max Utility Input
200 Amps
Max Generator Input
200 Amps
Overview
Weight
30 Pounds
Consumer Warranty
5 Years
Product Depth
9 Inches
Product Width
18.2 Inches
Product Height
26.9 Inches
UPC
650531125484
Additional Model Numbers

RXT-JMTC-0200A, RXT-JMTC-0200A-QS1
