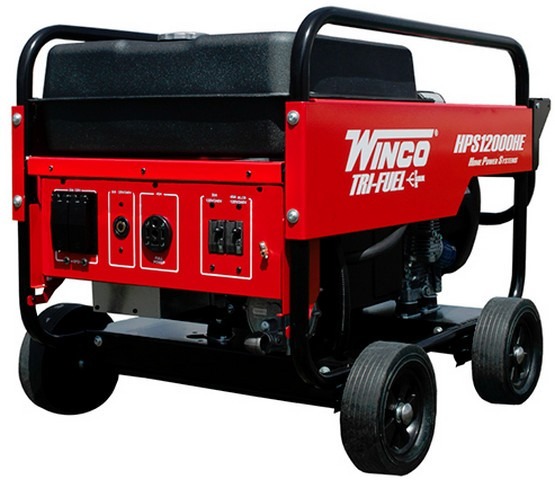

Winco HPS12000HE 10800 Watt Tri Fuel Generator Electric Start Honda Engine 49 State
  • Winco HPS12000HE 10800 Watt Tri Fuel Generator Electric Start Honda Engine 49 State
  • Winco HPS12000HE 10800 Watt Tri Fuel Generator Electric Start Honda Engine 49 State
  • Winco HPS12000HE 10800 Watt Tri Fuel Generator Electric Start Honda Engine 49 State

Winco HPS12000HE 10800 Watt Tri Fuel Generator Electric Start Honda Engine 49 State

item #OG730877597

$2,421.00
Quantity:


Product Description

Features

Grade

Emergency

Style

Portable

Run Watts

10,800 Rated Watts

Surge Watts

12,000
Starting Watts

Fuel

LP/Natural Gas/Gasoline

Engine

Honda GX

  • Winco HPS12000HE Electric Start Tri-Fuel Portable Generator
  • Ideal for providing emergency home backup power
  • **Please Note - Derate Output By 10% For LP & 20% For NG**
  • See spec sheet for details
  • Electric Start - Just Turn The Key
  • Includes battery rack and cables
  • Battery requirements BCI group U1 rated at 300 CCA
  • 688cc Honda GX630 OHV V-Twin 4-Cycle Engine
  • High quality, industrial grade engine
  • OHV design for increased efficiency and optimal power transfer
  • Honda Oil Alert® Warning System
  • Shuts the engine down if oil reaches an unsafe operating level
  • Prevents engine damage from overheating due to lack of oil
  • Tri-Fuel Carburetor and Gas Regulator
  • Versatile generator runs on L.P gas, natural gas or gasoline
  • Mecc Alte S20F Brushless Alternator
  • 100% copper windings, NEMA Class F insulation
  • Capacitor Regulated Voltage - < 5% Total Harmonic Distortion (THD)
  • Inherent voltage regulation protects electronics from surges
  • 15-Gallon Steel Fuel Tank w/ Fuel Gauge
  • EPA approved design eliminates carbon emissions
  • 120/240V 30-Amp (L14-30) & 60-Amp (14-60) Receptacles
  • Allows for connection to a manual transfer switch (MTS)
  • 45-Amp Main-Line Circuit Breaker
  • Provides superior overload protection
  • Wrap-Around 1" Tubular Steel (14-Gauge) Cradle
  • Powder-coat paint protects finish from damage and debris
  • Four-Wheel Flat Free Dolly & Folding Handle Kit
  • Makes this generator easy to move
  • 100% Load Tested
  • All generators are tested prior to leaving the factory
  • 2-Year (Generator) / 3-Year (Engine) Residential Warranty
  • NOTICE* - Tri-Fuel Starting On Vapor Fuel (LP or NG)
  • Use of the choke will prevent air and fuel from properly mixing
  • Must be started using the electric start system provided

Product Specification

Specifications

16612-003
General Information
Product Category
Generator - Portable
Overview
Product Category
Generator - Portable
Assembly Required
Yes
Weight
435 Pounds
CARB Compliant
No
Certification
EPA
Made in USA
Yes
Consumer Warranty
2 Years
Commercial Warranty
1 Year
Product Style
Portable Generator
Product Length
39.5 Inches
Product Width
26 Inches
Product Height
26 Inches
Additional Model Numbers

HPS12000HE, 16612-003

Product Specs
Voltage
120/240 Single-Phase
Frequency
60 Hertz
Alternator
Brushless
Auto Voltage Regulation
Yes
Rated Watts
10800 Watts
Surge Watts
12000 Watts
Fuel Type
LP/Natural Gas/Gasoline
NG Fuel Consumption @ 100% Load
200 ft³/hr
LP Fuel Consumption @ 50% Load
2.2 gallons/hr
Rated Amps
45 Amps
Portability Kit
Never Flat Wheels
Tank Size
15 Gallons
Run Time @ 50% Load
14.5 Hours
Fuel Tank Material
Metal
Fuel Gauge
Yes
Decibel Rating @ 7m
78 dbA
Idle Control
No
Hour Meter
No
Voltage Meter
No
Lifting Eye
No
Battery
Not Included
Grade Type
Emergency
CO Sensing
No
Low THD
Yes
Engine
Engine Brand
Honda GX
Starting System
12-Volt Key Start
CC
688 CC
Consumer Engine Warranty
3 Years
Commercial Engine Warranty
3 Years
Engine RPM
3600 RPM
Low Oil Alert/Shutdown
Yes
Cast Iron Sleeve
Yes
Plugs
NEMA 5-20R - Wall-Type
2
NEMA L14-30R
1
NEMA 14-60R
1
